Borehole Array VSP

Introduzione Introduction
Il VSP con array di geofoni in pozzo acquisisce segnali generati in superficie e registrati da ricevitori distribuiti verticalmente lungo un pozzo, fornendo dati ad alta risoluzione vicino al target e un ottimo rapporto segnale/rumore. Borehole array VSP acquires seismic signals generated at the surface and recorded by receivers vertically distributed along a borehole, providing high-resolution data close to the target with excellent signal-to-noise ratio.

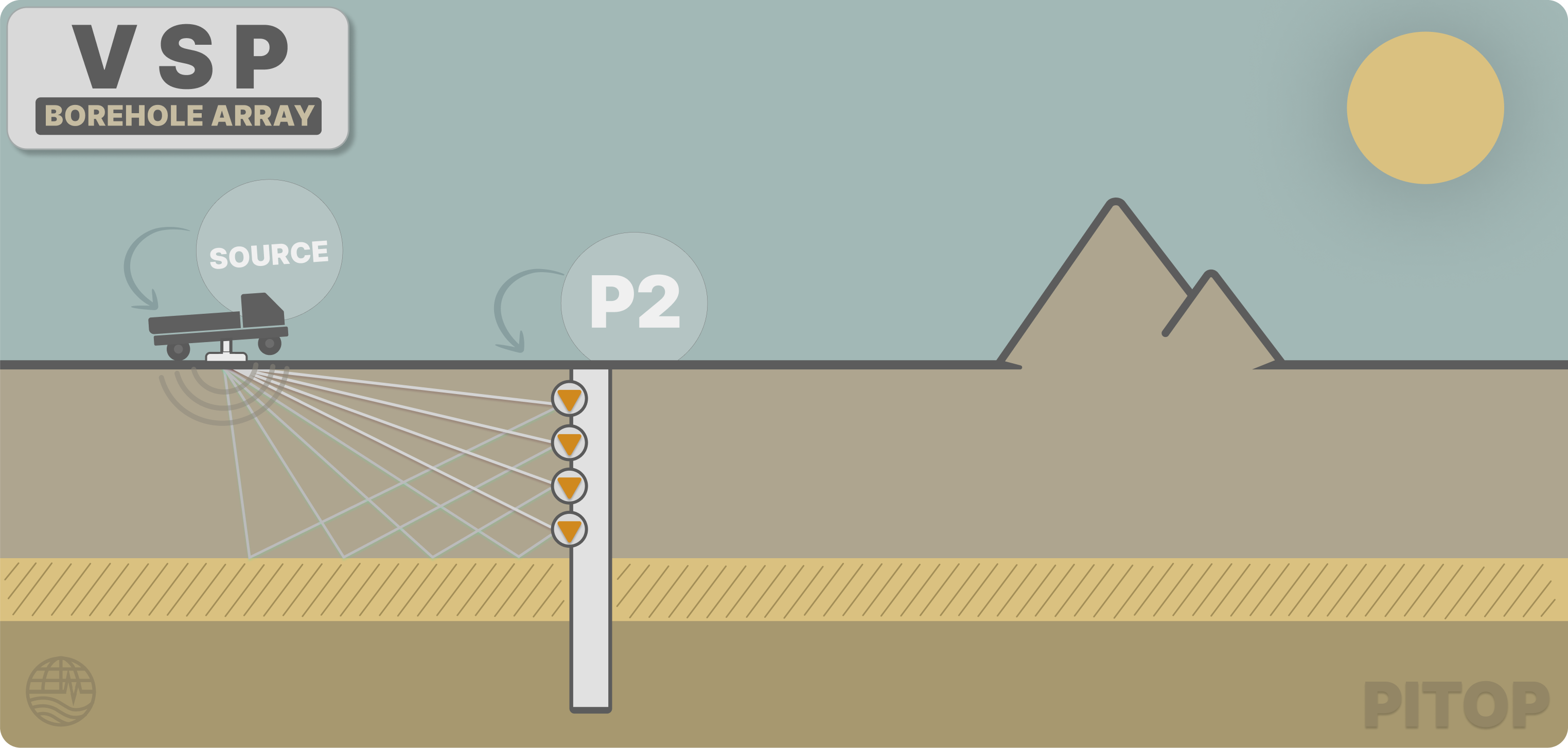

Borehole Array VSP scheme
Schema concettuale di acquisizione VSP con array di geofoni in pozzo. Conceptual VSP acquisition using a borehole geophone array.

In breve At a glance

  • Geometria: sorgente in superficie, ricevitori in pozzo distribuiti in verticale. Geometry: surface source, downhole receivers distributed vertically.
  • Ricevitori: array permanente di geofoni 3C cementati lungo la colonna. Receivers: permanent string of cemented 3C geophones.
  • Output: separazione onde dirette/riflesse, riflessioni profonde, proprietà elastiche. Outputs: separation of direct/reflected waves, deep reflections, elastic properties.
  • Uso: calibrazione sismica 2D/3D e monitoraggio time-lapse. Use: 2D/3D seismic calibration and time-lapse monitoring.

A PITOP, l'array VSP è implementato nel pozzo PITOP2, dove 30 geofoni triassiali sono cementati lungo una colonna verticale fino a circa 385 m. Questi sensori sono utilizzati per registrare le risposte sismiche generate da diverse sorgenti di superficie, come vibroseis, airgun o sparker. At PITOP, the VSP array is implemented in the PITOP2 well, where 30 three-component geophones are cemented along a vertical string down to approximately 385 m. These sensors are used to record seismic responses generated by different surface sources, such as vibroseis, airgun or sparker.

La configurazione permanente dell'array consente di condurre esperimenti ripetibili nel tempo e di sviluppare studi avanzati su riflessioni profonde, onde convertite e anisotropie. I dati VSP ottenuti sono fondamentali per calibrare profili sismici 2D e 3D, oltre che per l'analisi dettagliata delle proprietà elastiche delle formazioni. The permanent configuration of the array allows repeatable experiments over time and supports advanced studies on deep reflections, converted waves and anisotropy. Acquired VSP data are fundamental for calibrating 2D and 3D seismic profiles, as well as for detailed analysis of formation elastic properties.

L'approccio borehole array VSP a PITOP è particolarmente adatto per il monitoraggio in time-lapse, esperimenti di interferometria e validazione di modelli numerici, offrendo una piattaforma ideale per lo sviluppo e la sperimentazione di tecnologie geofisiche avanzate. The borehole array VSP approach at PITOP is particularly well suited for time-lapse monitoring, interferometry experiments and numerical model validation, providing an ideal platform for the development and testing of advanced geophysical technologies.
